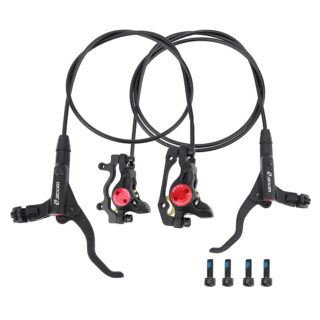

CATAZER black hydraulic disc brake set front 800mm rear 1450mm

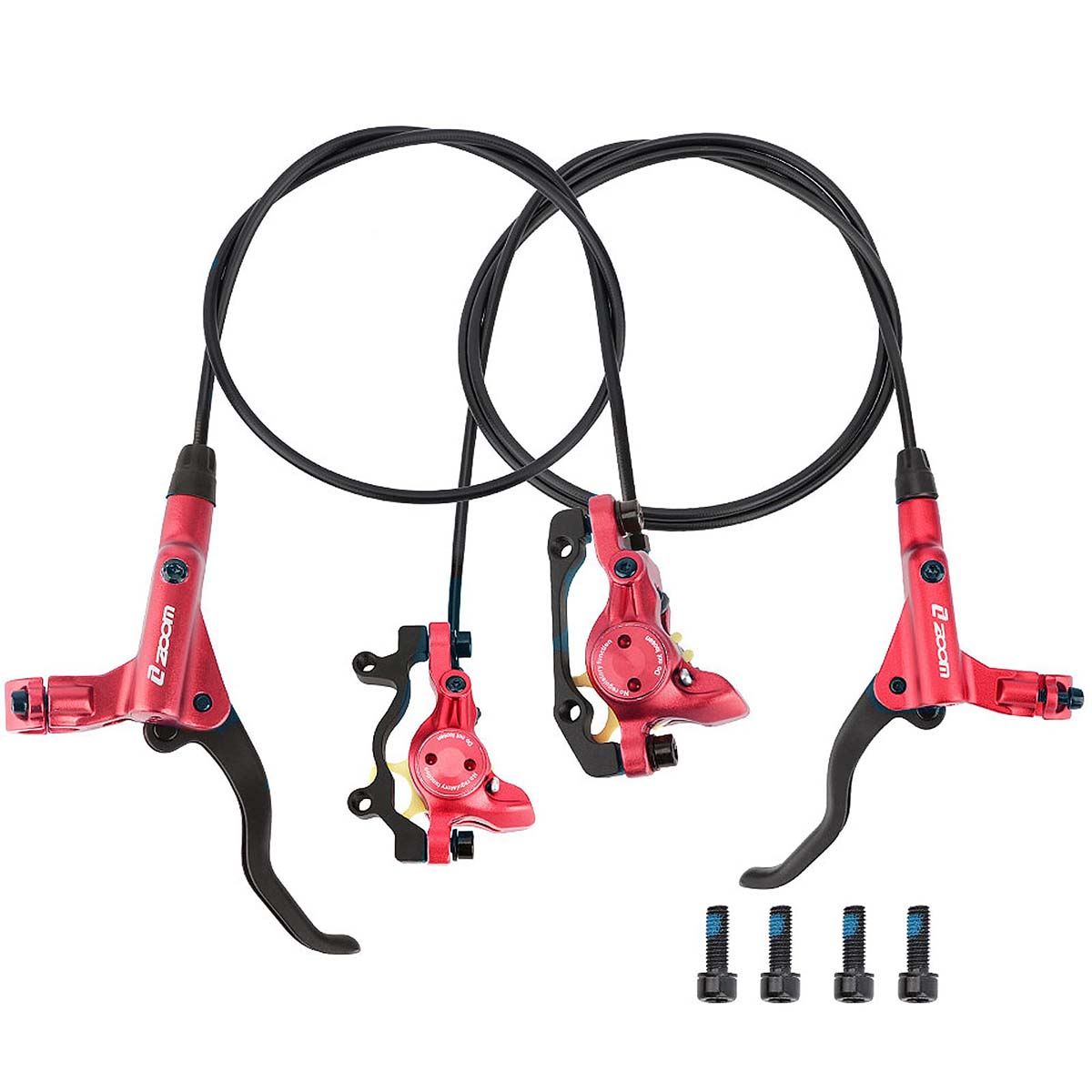

CATAZER red hydraulic disc brake set front 800mm rear 1450mm

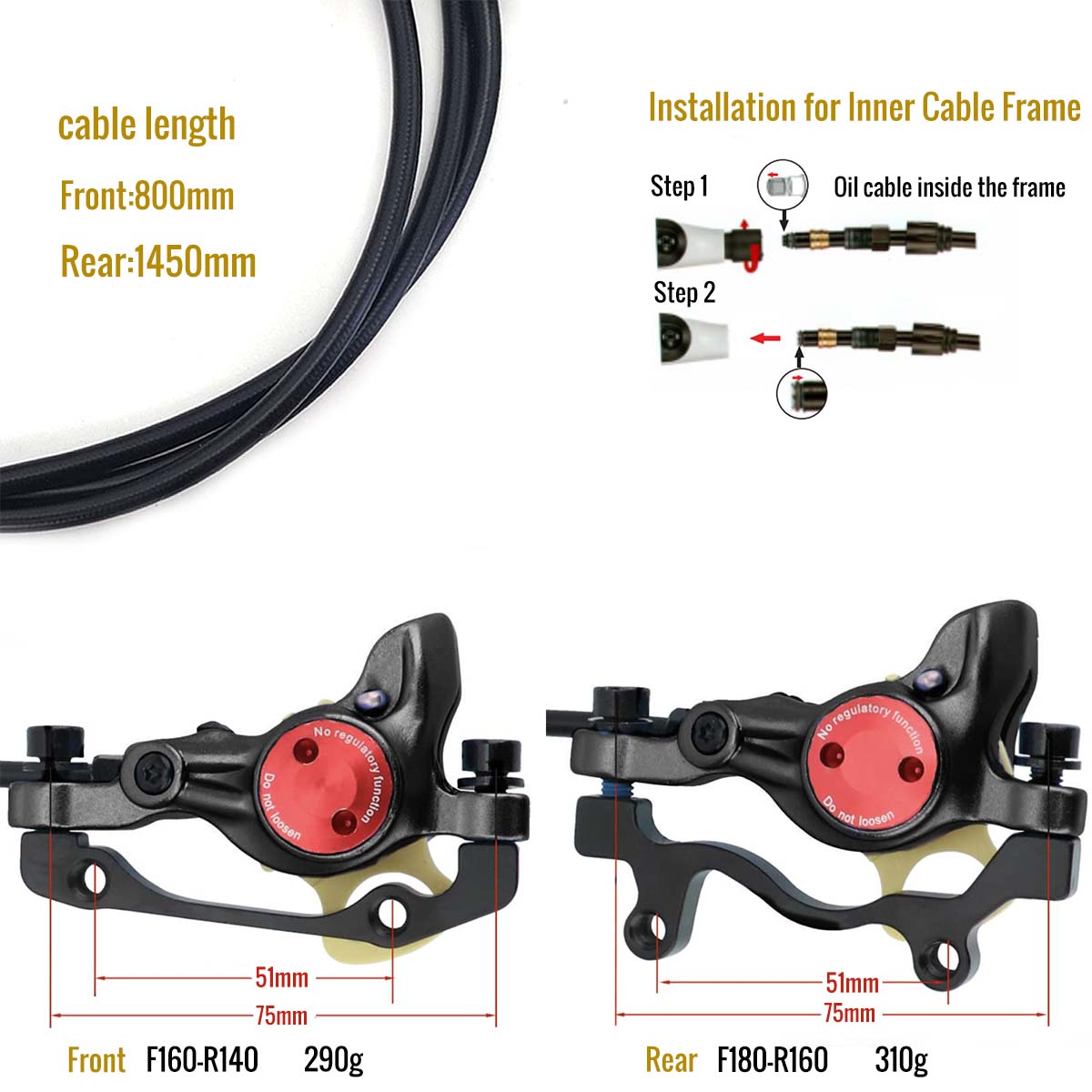

CATAZER aluminum alloy bike disc brake caliper size

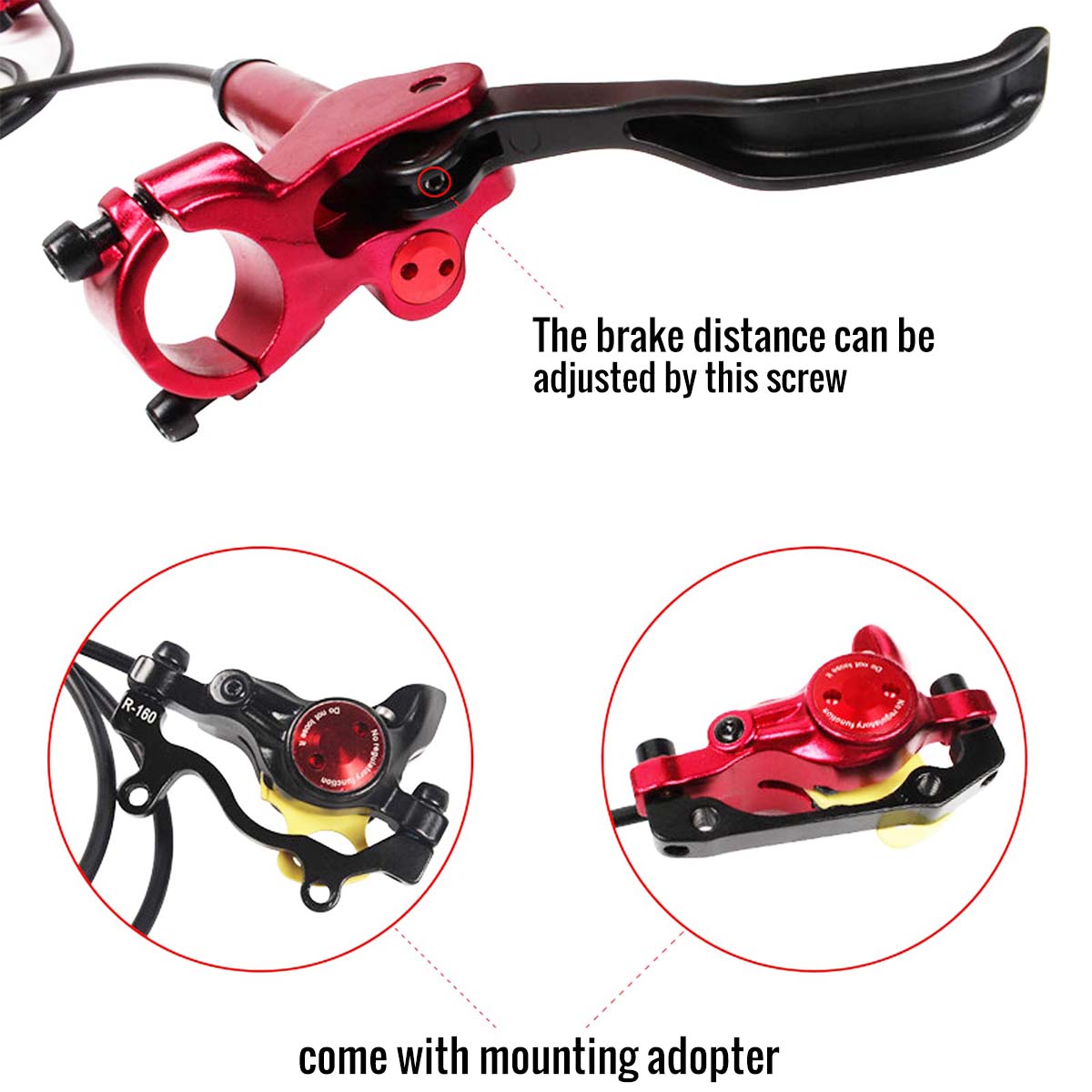

CATAZER hydraulic disc brake kit complete with adapters and mounting screws
CATAZER red hydraulic brake do not remove yellow block before mounting
CATAZER hydraulic brake caliper on mtb fat bike – reliable stopping power for any terrain
CATAZER black hydraulic disc brake set front 800mm rear 1450mm
CATAZER red hydraulic disc brake set front 800mm rear 1450mm
CATAZER aluminum alloy bike disc brake caliper size
CATAZER hydraulic disc brake kit complete with adapters and mounting screws
CATAZER red hydraulic brake do not remove yellow block before mounting
CATAZER hydraulic brake caliper on mtb fat bike – reliable stopping power for any terrain
CATAZER mechanical disc brake caliper front rear aluminum alloy 1 pair Mechanical Bicycle Disc Brake Aluminum Alloy Front Rear Universal Fit 160mm Rotor
CATAZER 165mm mountain bike air rear shock aluminum alloy long travel rebound Mountain Bike Air Rear Shock 165/190/200/210mm Air Rebound Shock Absorber

MTB Oil Hydraulic Disc Brake Set with Brake Levers Caliper Oil Cable

0 reviews

$27.58 – $52.42

SKU: N/A
  • Cable: Right Side is Front 800mm .Left Side is Rear 1450mm,Lever: Forged aluminum lever & bracket two-piece bracket designed. 2.5 finger blade.
  • Caliper: One-piece forged aluminum body post/side mounting available. Automatic caliper positioning via front and rear adapters. Finish: black
  • Suitable for mountain E-Bike,bikes, MTB,road bikes and folding bikes

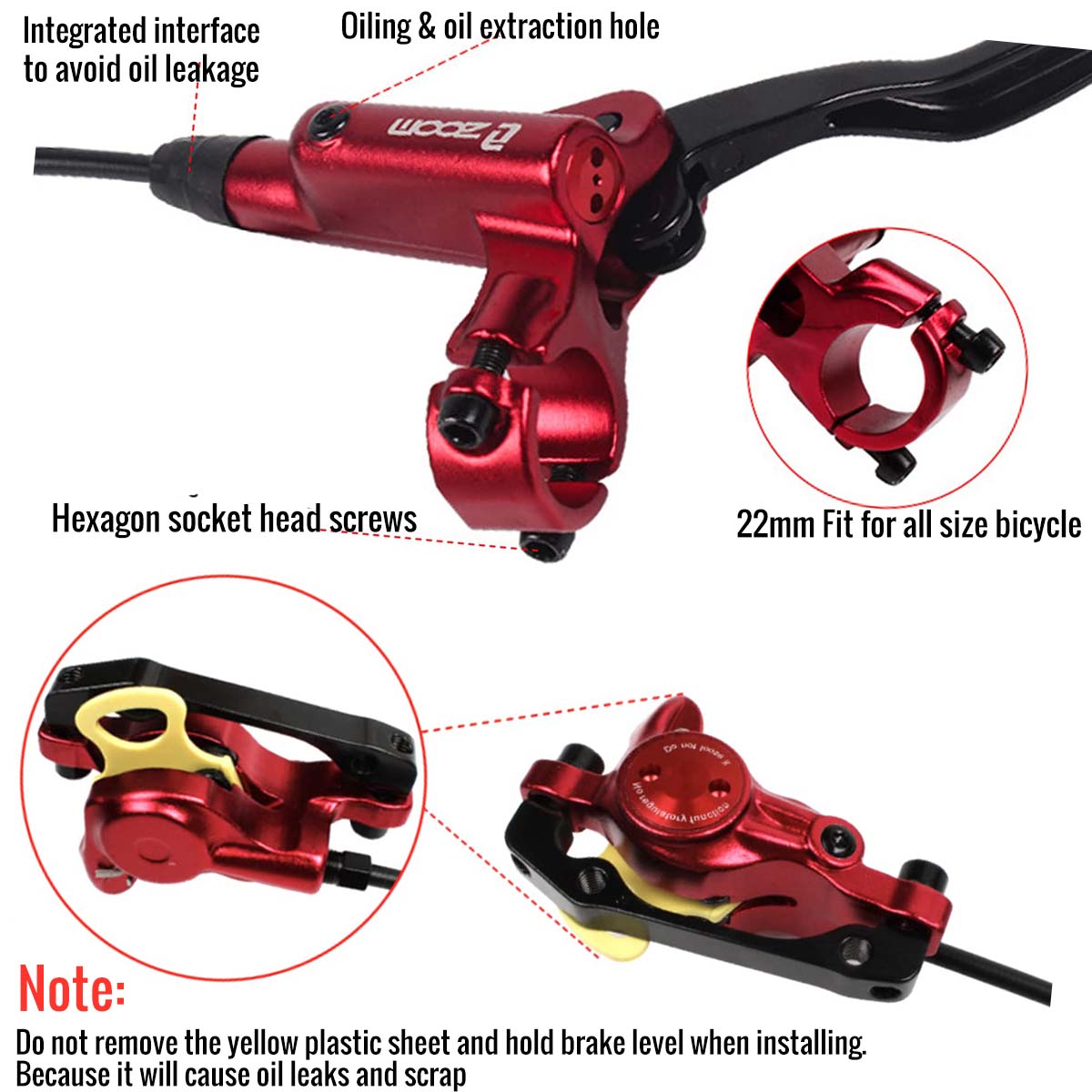

  • Note: Do not remove the “yellow piston block” when installation, otherwise it will cause oil leakage or scrap the oil hydraulic disc.
  • Two reasons will cause brake noise: 1) the wheels are not installed properly; 2) the disc rotor is not flat. Please note.
x
Ask B2B Quote
Add to wishlist

Description

Product Overview

Upgrade your stopping power with the MTB Oil Hydraulic Disc Brake Set, engineered for riders who demand reliable, powerful braking on mountain bikes, fat bikes, e-bikes, and scooters.
The complete hydraulic system features forged aluminum levers and one-piece forged aluminum calipers for exceptional strength and lightweight performance.

Specifications

  • Front Hose Length: 800mm (right side)
  • Rear Hose Length: 1450mm (left side)
  • Weight: Front 203g, Rear 240g
  • Finish: Black/Red

How to Install

  1. Mount calipers – Attach the appropriate adapter to your frame/fork, then mount the caliper. Do not remove the yellow piston block yet.
  2. Align calipers – Use the automatic positioning feature to center the caliper over the rotor. Tighten mounting bolts.
  3. Remove yellow block – After calipers are securely mounted, carefully remove the yellow piston block. Never squeeze the brake lever before removal, as this will cause oil leakage.
  4. Attach hoses – Connect the pre‑filled hoses to levers and calipers. Ensure all fittings are tight.
  5. Test operation – Gently squeeze levers to check for proper pressure and pad movement. If brakes feel spongy, system may need bleeding.
  6. Final check – Spin wheels to confirm no rubbing. If noise occurs, verify wheel installation and rotor flatness.

Package Include

Based on your order selection

  • 1 x Front Brake Caliper (with 800mm hose, right side lever)

  • 1 x Rear Brake Caliper (with 1450mm hose, left side lever)

  • Front and rear mounting adapters

  • Brake pads (pre‑installed)

  • Mounting hardware and screws

Additional information

Weight N/A
Dimensions N/A
Color

Black, Red
Quantity

, ,
