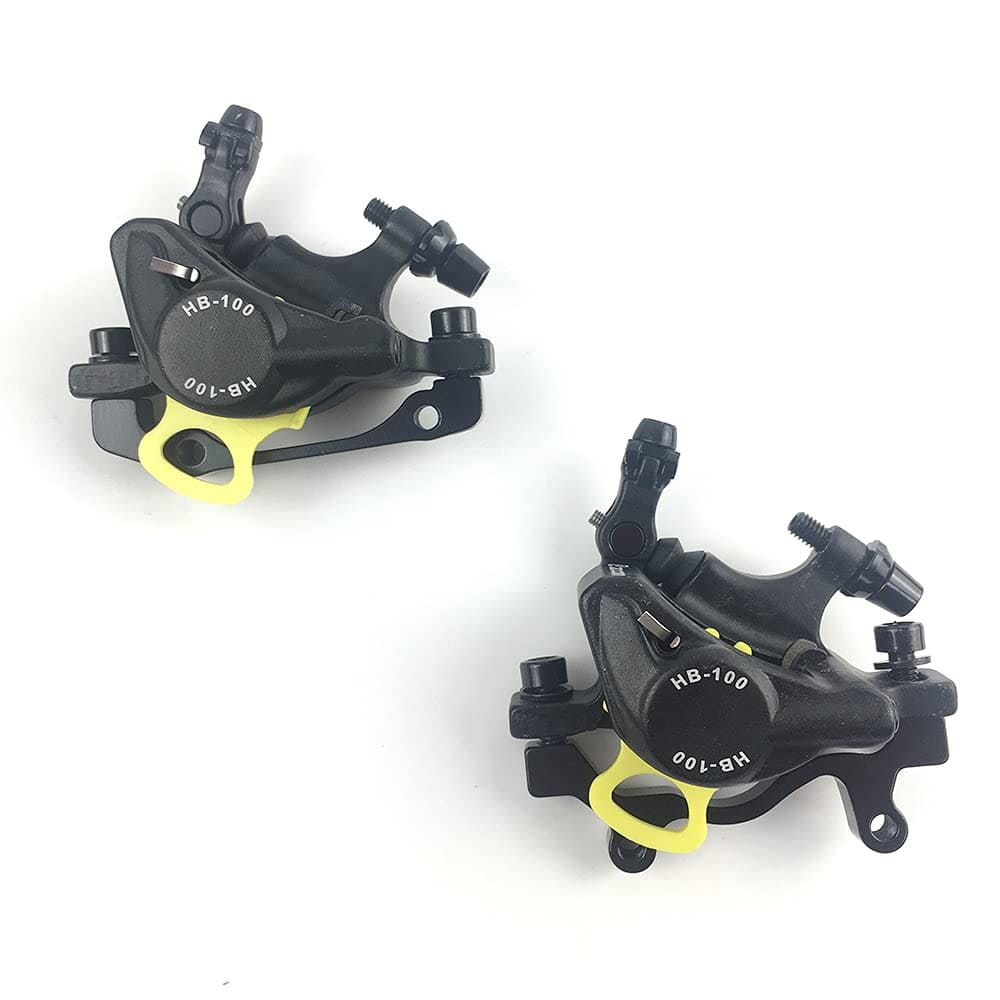

CATAZER HB-100 rear caliper showing cable pull mechanism and hydraulic internals
CATAZER HB-100 bicycle hydraulic brake calipers black size
CATAZER HB-100 brake calipers installed on mountain bike frame
CATAZER HB-100 front caliper 199.6g lightweight aluminum construction with yellow piston block
CATAZER bicycle disc brake mechanical to hydraulic upgrade
CATAZER bike hydraulic disc caliper universal
CATAZER black PU leather punched handlebar tape 210cm for road bike 2-pack Bicycle Handlebar Tape 210cm Length PU Leather Wear Resistance
CATAZER black complete front and rear V brake kit with calipers levers cables Bicycle V Brake Set Aluminum Alloy Front and Rear Rim Brake Kit

HB-100 Bike Line Pulling Hydraulic Front Rear Disc Brake Calipers kit

0 reviews

$17.58 – $33.33

SKU: DIS-021 Brand:
  • Braking System: Line Cable Pulling Hydraulic Disc Brake
  • Note: Do not remove the “yellow piston block” when installation, otherwise it will cause oil leakage or scrap the oil hydraulic disc.
  • Two reasons that will cause brake noise: 1) the wheels are not installed properly; 2) the disc rotor is not flat. Please note.
  • Suitable for mountain E-Bike,bikes, road bikes and folding bikes
  • Weight: Front 199.6g, Rear 204.8g
x
Ask B2B Quote
Add to wishlist

Description

CATAZER HB 100 bike disc brake

Product Overview

Upgrade your braking performance with the HB-100 Bike Brake Calipers, engineered for riders who want hydraulic power without replacing their existing cable-pull shifters and levers.
This innovative system combines the simplicity of mechanical cable actuation with the smooth modulation and stopping force of hydraulics.
Made from lightweight aluminum, the front caliper weighs just 199.6g and the rear 204.8g. Universally compatible with mountain e-bikes, standard MTB, road bikes, and folding bikes.

Specifications

  • Front Caliper Weight: 199.6g
  • Rear Caliper Weight: 204.8g
  • Material: Aluminum Alloy
  • Rotor Size: 160mm
  • Compatible Both 51mm IS & 74mm Post mounting

How to Install

  1. Mount calipers – Attach front and rear calipers to your frame/fork using the included hardware. Do not remove the yellow piston block yet.
  2. Attach cables – Connect your existing brake cables to the calipers using standard cable attachment methods.
  3. Align calipers – Center the calipers over your rotors. Tighten mounting bolts securely.
  4. Remove yellow blocks – After calipers are securely mounted, carefully remove the yellow piston blocks. Never squeeze the brake lever before removal, as this will cause oil leakage and permanent damage.
  5. Test operation – Gently squeeze levers to check for proper pressure and pad movement. If brakes feel spongy, system may need bleeding.
  6. Final check – Spin wheels to confirm no rubbing. If noise occurs, verify wheel installation and rotor flatness.

CATAZER HB 100 bike disc brake install

Package Include

Select according to your order

  • single or 1 pair HB-100 Bike Brake Calipers

Additional information

Weight 0.54 kg
Dimensions 16 × 12 × 5 cm
Color

Black, Red
Quantity

, ,
